Medizinischer Formkernstift Medizinischer Formkernstift
Medizinischer Formkernstift Medizinischer Formkernstift
Medizinischer Formkernstift Medizinischer Formkernstift


Medizinischer Formkernstift

Anteil an:

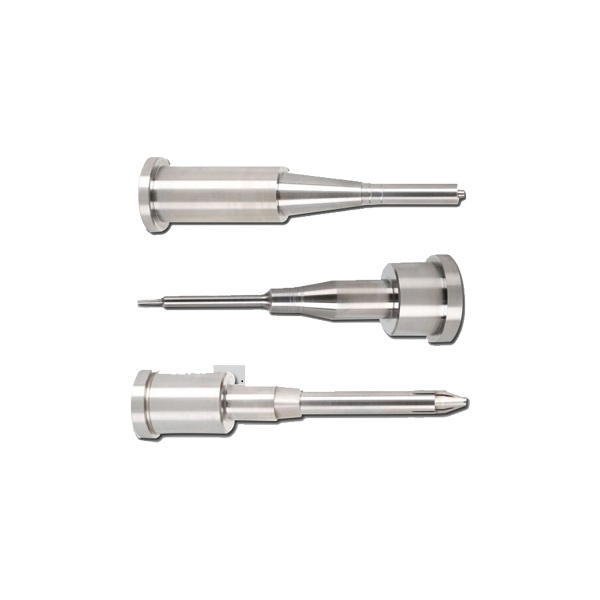

Name: Medical Mold Core Pin S136H, S136, 8407, Medical Mould Core Pin, Pharmaceutical Machinery Parts

  • MWC-1911

  • Ja

  • SKD61, S136H, S136, 8407


Medical Mold Core Pin S136H, S136, 8407 Application

Core pins are used primarily in the plastic molding and die casting applications. In most cases core pin are fixed in the plastic mold and are used to create a desired shape in the molded or cast part.

  • As common mold core parts, applied to the mold machines to produce medical consumption devices, syringe piston, blood test tube.

  • Components for food machinery, food packaging machinery.

  • Parts for pharmaceutical packaging machinery.

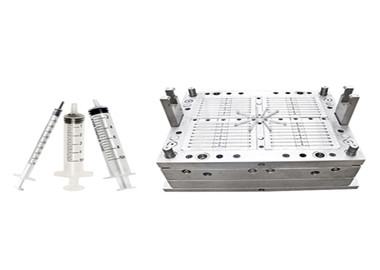

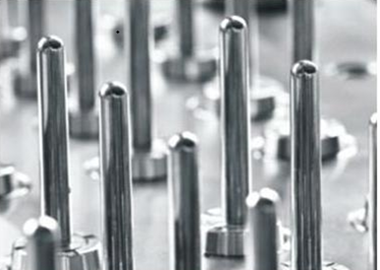

medical mould core pin-MWMECHPARTS medical core pin supplier-MWMECHPARTS plastic injection mould core pin -MWMECHPARTS

Medical Mold Core Pin S136H, S136, 8407 Customization

  • Material:  SKD61, S136H, S136, 8407

  • Hardness: 50-52HRC

  • Tolerance: +/-0.01mm - +/-0.005mm

  • RA: 0.4

  • Application: Plastic mould

You need to provide clear drawings and requirements so as to for our engineers understand thoroughly.

We can also supply precision mechanical parts as below:

Pharmaceutical Machinery Parts,

Food Machinery Components,

Food-Packaging Machinery Components

Assemble Line Punch,

Assemble Line Head Punch,

Assemble Line Connecting -Adapter Parts,

Assemble Line Mounting Plate Components,

Assemble Line Metal Gripper,

Assemble Line Guide Sleeves,

Assemble Line Orientation Inserts,

Assemble Line Flange Connector parts,

Assemble Line Device,

Orientation Parts for Assemble Line,

Measurement Parts for Assemble Line,

Inspection Parts,

Non- Standard Metal Dividing Cutters Assemble Line Tooling…

Medical Mold Core Pin S136H, S136, 8407 Features

  • Good consistency, stable quality, precision tolerances +/-0.01mm to +/-0.005.

  • S136H material has the perfect property of anti-rust in the water vapor application environment and anti-corrosion to the mould when the corrosive PVC is the raw material.

  • Perfect wear resistance property of S136H satisfying with long time and volume production.

  • Perfect fine surface finish and polisher of S136H satisfied with the fine surface look of the plastic products.

  • ASSAB 8407 material has strong property of thermal shock resistance and cracking resistance and the isotropic homogeneity.

Medical Core Pin Packaging

Inner: bubble bag, PE bag or plastic seal with anticorrosive oil plus outer carton box, or other safe package.

Precision Mold Components Surface Treatment Function

Precision Mould Parts Surface Treatment Methods

The main surface treatment methods of die accessories are: electroplating, spraying, polishing, anodizing, blackening, etc.

The function is to improve the appearance, the corrosion resistance and wear resistance of the mold parts. Each has its own unique use environment and condition as below:

  • Steel Material Electroplating

Electroplating-Electroplating is a method of treating the surface of precision mold components with a layer of metal film. Different metals, such as chromium, zinc, or nickel, are used as coatings in different utility environments.

Usage: It is used for parts with low dimensional accuracy requirements. Because the thickness uniformity of electroplating is not easy to control, the accessary processing is required to ensure the accuracy when the dimensional accuracy is high.

  • Steel Material Spraying

Spraying refers to the treatment method of spraying a layer of coating on the surface of precision mold parts.

Usage: It can be used as the final surface treatment for parts requiring high dimensional precision and high wear resistance.

  • Steel Material Polishing

Polishing refers to treat the surface into a smooth, flat, burr free state.

Usage: To improve the appearance, the micro roughness and wear resistance of the mold and die parts.

  • Common Steel Blackening

Blackening refers to the method of treating the surface of the mold parts into a layer of black oxide film.

Usage: Ordinary steel as a kind of mold parts material, if it’s performance needs and corrosion resistance requirements are not high, blackening treatment can be cost saving.

  • Aluminum Anodizing

Anodizing- Anodizing refers to treat the surface of die parts into a layer of oxide film.

Usage: Because of its low hardness, usually used as an auxiliary mold accessories.

You may have many choices of surface treatments according to your needs. Below are some usual methods we use.

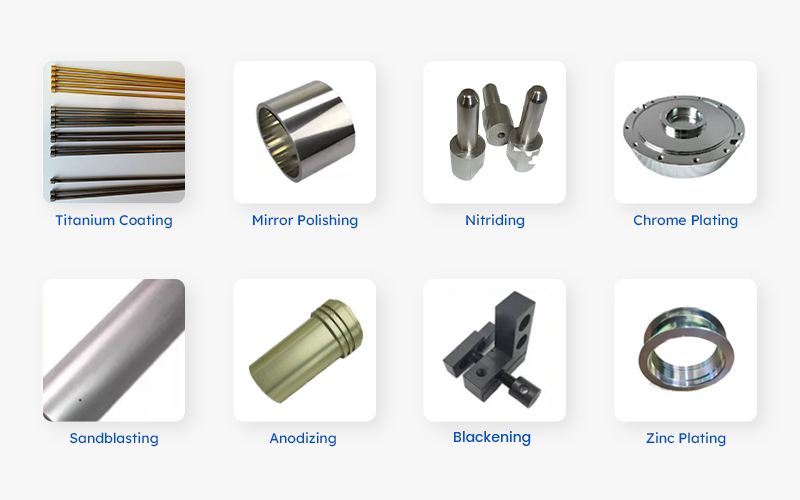

surface treatment-MWMECHPARTS


Q: What service can you do?

A: OEM/ODM. Free samples available after price confirmed, but you need to share the sample freight. We produce the parts per customers'drawing or sample. Concerning the protection of customers'intellectual property, we don't sell our customers'same product to the third party.

Q: What data should the customer provide for a precise quotation?

A: The drawings or samples, quantity, tolerance, standard, material, surface finish, other special requirements, etc.

Q: What're your delivery methods?

A: DHL, EMS, UPS, land transport or sea freight available.

Q: How do you assure the quality control?

A: Full inspection with test report and material composition certificate for each order and 1-year after-sale service for free repair or replacement for deficit products. Almost zero repair rate and defective products all replacement or repair for free.

Q: How long is your lead time?

A: 10-30days up to the quantity.

Q: what surface treatments can you deal with?

A: Titanium nitride (TiN), TiCN, titanium plating, blackening, carburize, zinc plating, zinc coating,  galvanization, chrome plate, etc.

Q: what's your payment term?

A: T/T, L/C, western Union, PayPal, etc.
